How Electroluminescent Paint Works: A Guide to Sprayable Capacitive Lighting

Forget the “glow-in-the-dark” novelty. This is Solid-State Luminescence—a functional application of electroluminescence that transforms a physical surface into a cold-light capacitor. For those interested in the crossover between high-end coatings and electrical engineering, Electroluminescent (EL) paint is essentially a sprayable electronic component.

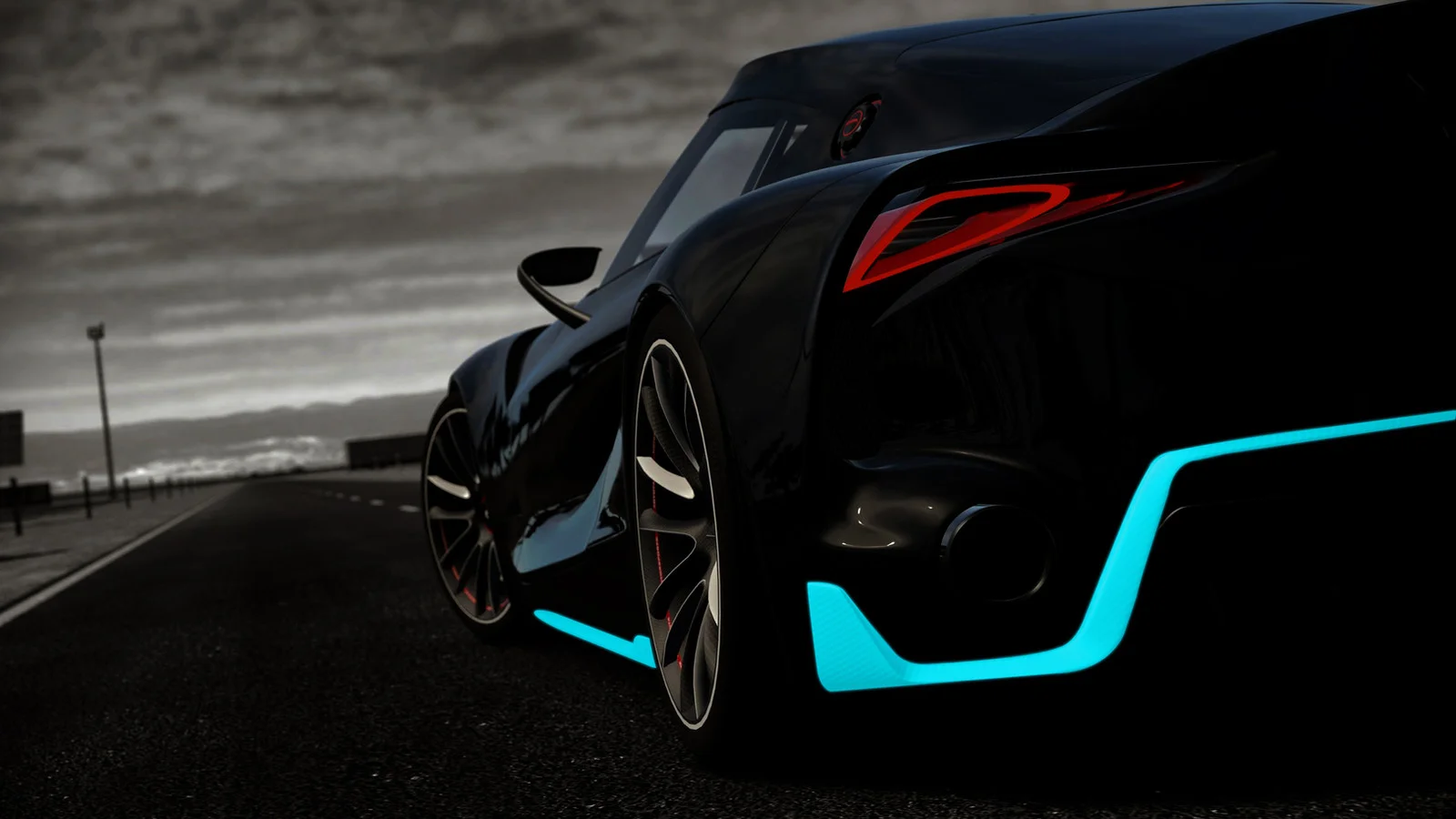

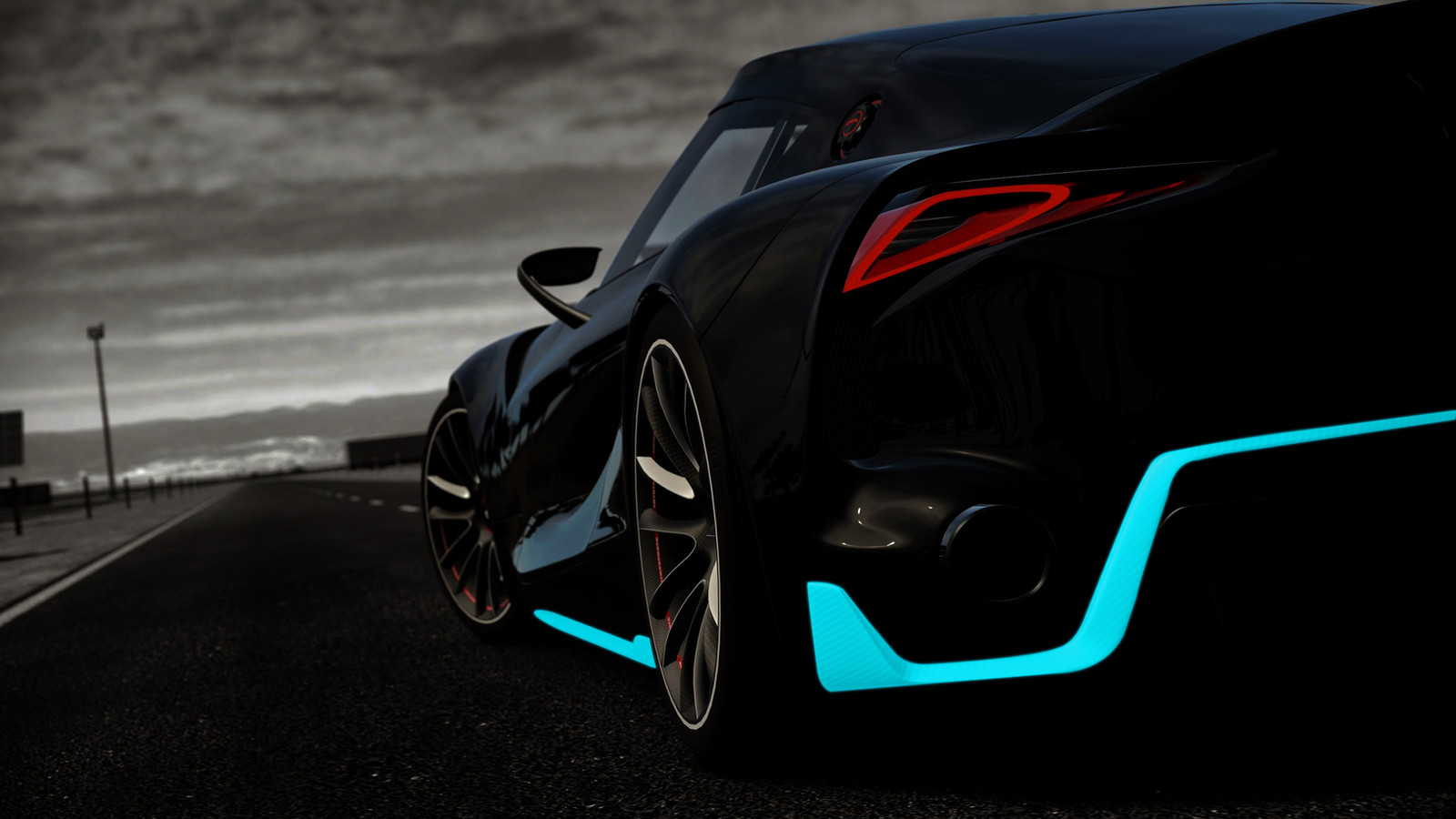

By layering conductive and phosphorescent materials, you can turn a 3D substrate—whether it’s a vehicle chassis, an aerospace component, or a carbon-fiber housing—into a light-emitting device.

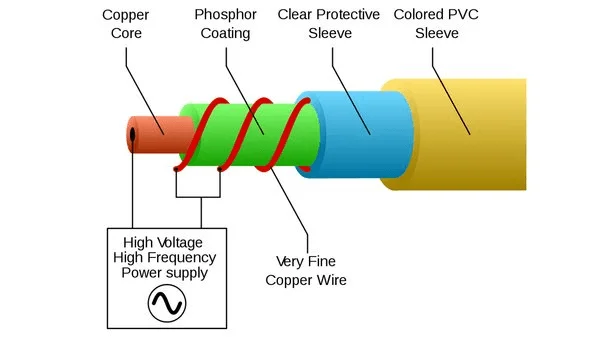

The Architecture of the Stack

This isn’t a single-stage process. It is a multi-layered electronic “sandwich” where each layer serves a specific electrical function. To make a surface glow, you are essentially building a parallel-plate capacitor:

1. Conductive Base (The Bus): A highly conductive primer that serves as the negative electrode.
2. Dielectric Layer: A high-performance insulator that prevents an electrical short between the electrodes.
3. Phosphor Engine: Micro-encapsulated crystals that emit photons when subjected to an alternating electric field.
4. Transparent Conductive Topcoat: A clear, conductive layer (often using Indium Tin Oxide or silver nanowires) that completes the circuit while allowing light to pass through.

Driving the Field

EL paint doesn’t run on standard DC. To excite the phosphors, you need an Inverter to provide high-frequency Alternating Current (AC)—typically between $400\text{Hz}$ and $2\text{kHz}$.

- Advertisement -

EXPLORE MORE

Architect of Empire, Harbinger of Famine: The Legacy of Sir Charles Trevelyan

Sir Charles Edward Trevelyan, 1st Baronet (1807–1886) stands as one of the…

Cardinal Pizzaballa: Christians want peace, ‘new leaders’ in Middle East

The Latin Patriarch of Jerusalem called for new leadership in the Middle…

Trump Goes Off on Democratic Socialists – Crowd Goes Wild After He Says Abdul El-Sayed is “Full of Sh*t” * The Gateway Pundit * by Jordan Conradson

President Trump went off on the Democratic Communists while speaking in Las…

Immigrant politician in Germany says he’d only fight for Ghana

A Ghanaian immigrant and local politician in Germany said that he would…

WATCH: Horror invasion unfolding as tens of thousands of Moroccans swarm Spanish enclave

Reactions are pouring in as the Spanish government struggles to respond to…

Wanted: Suspects for Shooting Incident in the 39th District [VIDEO]

The PPD Northwest Detective Division is attempting to identify the individuals responsible…

By manipulating the frequency and voltage of the inverter, you can fine-tune the output:

• Color Shifting: Higher frequencies can shift the output of certain copper-doped zinc sulfide phosphors from a deep aqua to a brighter green.

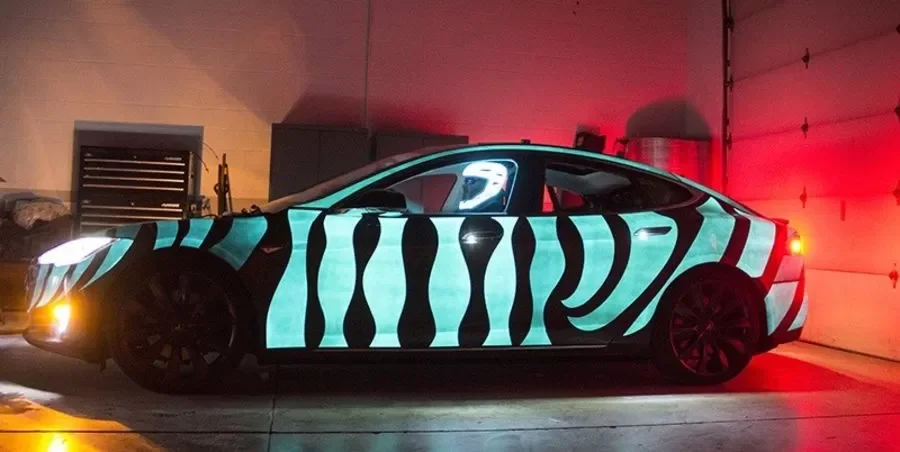

• Pulse Synchronization: Because there is no filament or gas to heat up, the response time is near-instant. You can sync the “zebra” patterns or geometric masks on a car like the Tesla shown above to strobe with sensor data or telemetry.

The Engineering Edge

Why use this over LEDs?

• Conformal Geometry: Unlike LED strips, EL paint has zero profile. It follows the exact aerodynamic lines of your build.
• Uniformity: It provides a perfectly even, “lambertian” light source with no hotspots or glare.
• Thermal Management: It is a “cold” light source. It generates negligible heat, making it safe for application on heat-sensitive composites or near volatile electronics.

This is a high-voltage, low-current system. The result is a surface that looks like it has been structurally integrated with light rather than just illuminated by it. It’s the difference between a flashlight and a glowing skin.
